• 12V pwr outlet
• Fixed long mast antenna
• Tilt steering column

• 3.73 axle ratio
• Electronically Controlled Throttle
• Front stabilizer bar
• Pwr 4-wheel anti-lock disc brakes
• Rear wheel drive
• Trailer tow wiring-inc: 4-pin connector

• Dual note horn
• Front height adjustable shoulder belts

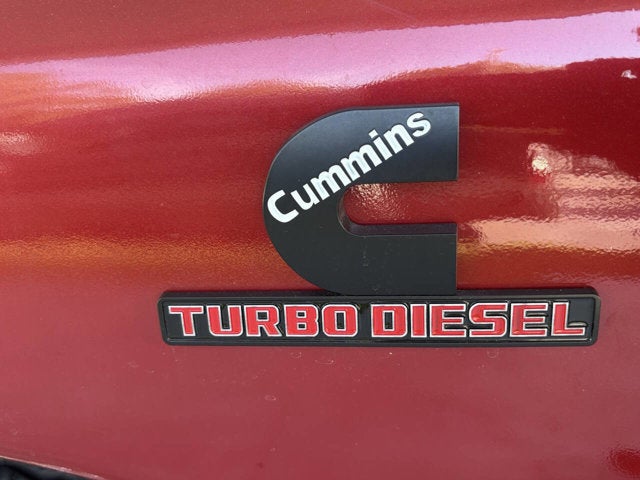

5.9L HO I6 CUMMINS TURBO DIESEL ENGINE

• 750-amp maintenance-free battery
• 11
• 500# GVWR

• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Power Steering
• Intermittent Wipers
• Variable Speed Intermittent Wipers

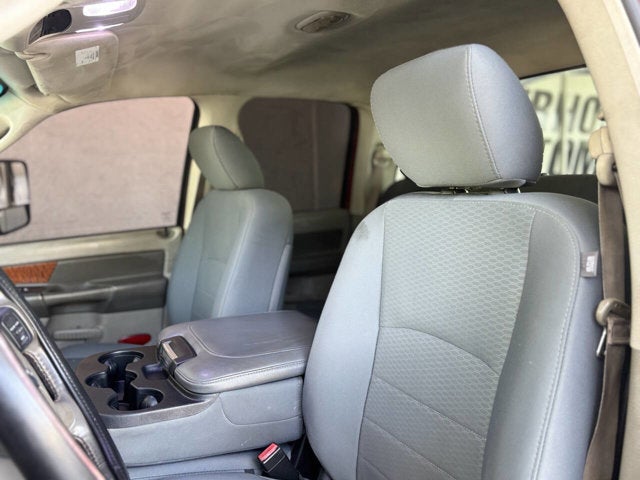

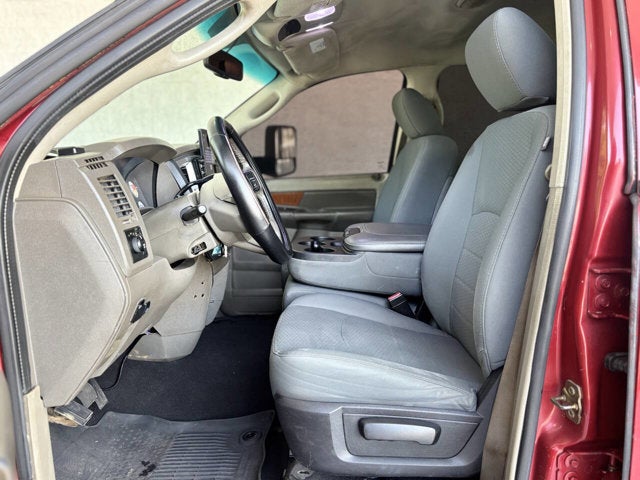

• Split Bench Seat
• Pass-Through Rear Seat

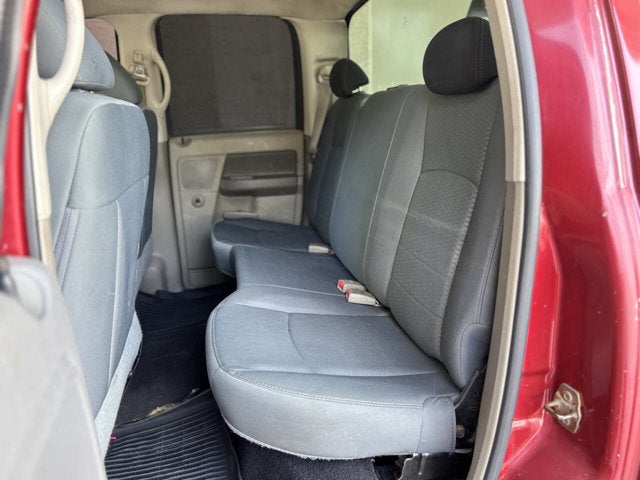

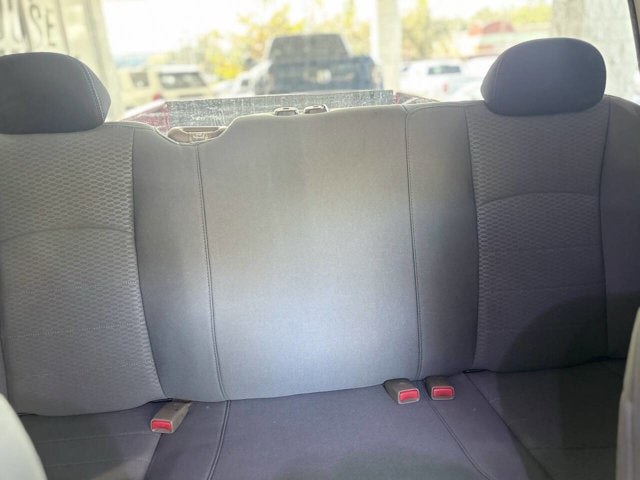

• Rear Bench Seat

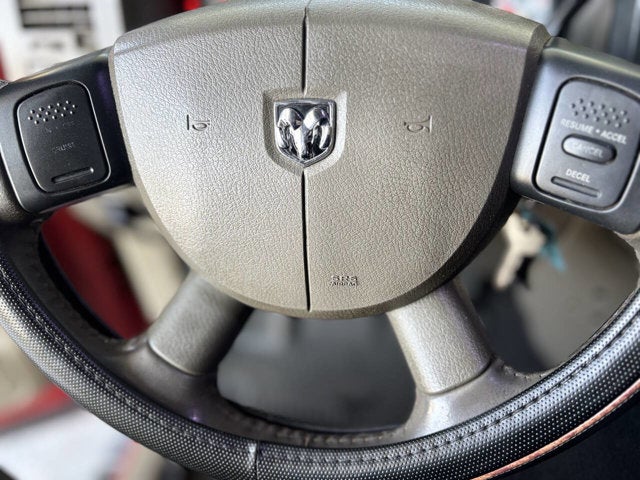

• Adjustable Steering Wheel
• A/C
• AM/FM Stereo
• CD Player
• Power Outlet
• Driver Air Bag
• Passenger Air Bag

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 136
• Maximum Alternator Watts: 1904
• Cooling System
• Total Cooling System Capacity (qts): 32.7
• Total Cooling System Capacity (qts): 18.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4750
• Gross Axle Wt Rating - Front (lbs): 4110
• Gross Axle Wt Rating - Rear (lbs): 9350
• Curb Weight - Front (lbs): 3425
• Curb Weight - Rear (lbs): 3034
• Gross Vehicle Weight Rating Cap (lbs): 12200
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 17000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1040
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.9 x 1.26
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 1.18
• Tires
• Front Tire Order Code: TPY
• Rear Tire Order Code: TPY
• Spare Tire Order Code: TPY
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6
• Rear Wheel Size (in): 17 x 6
• Spare Wheel Size (in): 17 x 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 52.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 160.5
• Length, Overall w/o rear bumper (in): 249.7
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 75.1
• Overhang, Front (in): 39.3
• Overhang, Rear w/o bumper (in): 49.9
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 7.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.3
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.2
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 74.9
• Ext'd Cab Cargo Volume (ft³): 56.7
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 67.0
• Front Hip Room (in): 65.1
• Second Head Room (in): 40.0
• Second Leg Room (in): 36.4
• Second Shoulder Room (in): 66.7
• Second Hip Room (in): 64.6
• Summary

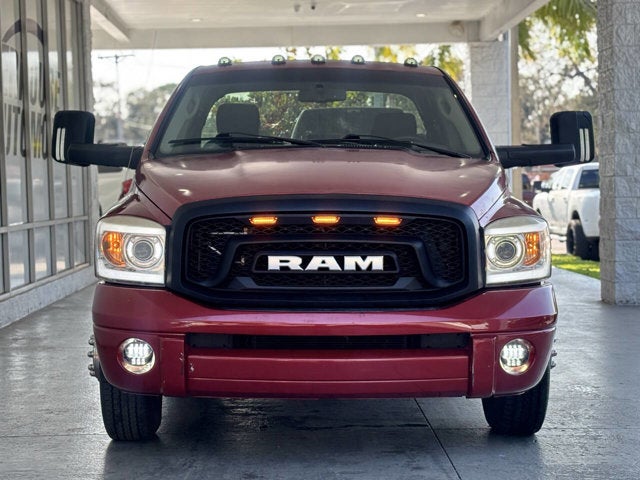

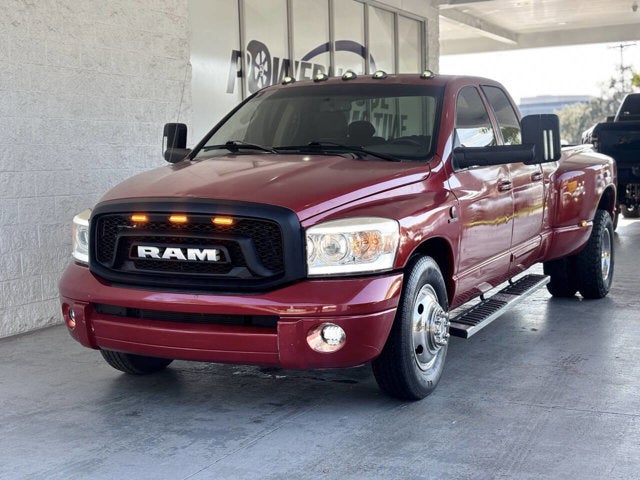

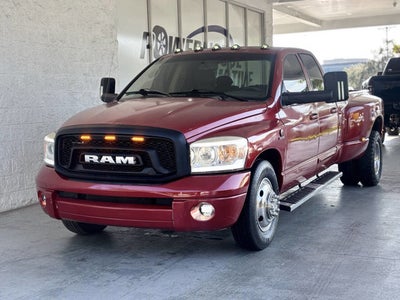

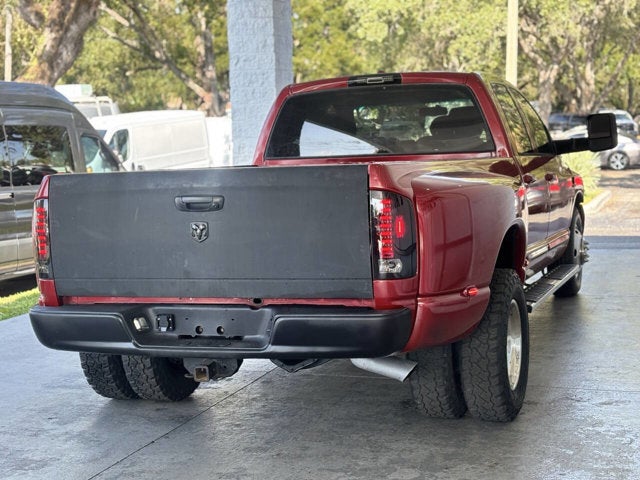

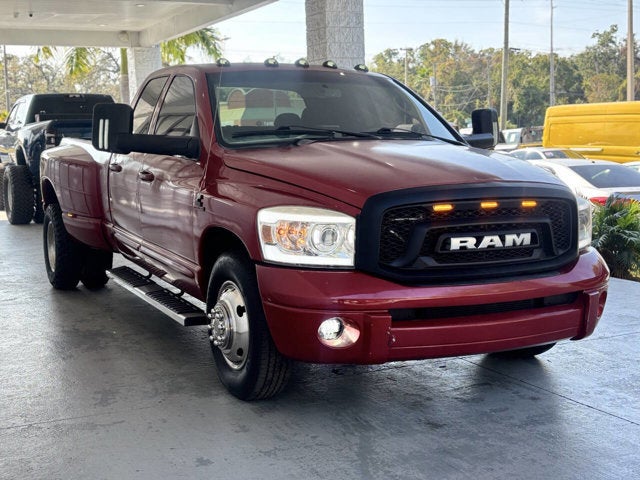

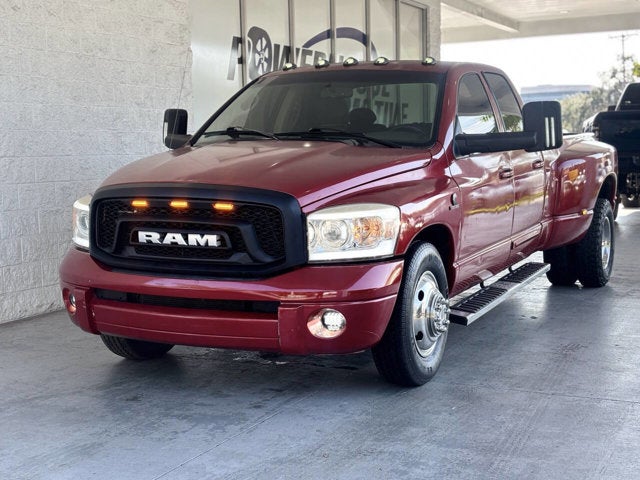

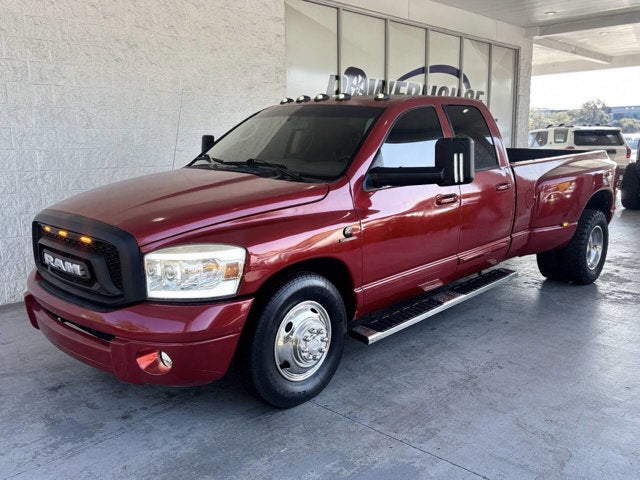

• Vehicle Name: Dodge Ram 3500
• Body Style: Quad Cab 8' Box
• Body Code: 160.5" WB
