• Mirror, inside rearview manual day/night
• Seat trim, Vinyl

• Air cleaner, high-capacity
• Four wheel drive
• Frame, fully-boxed, hydroformed front section

• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete

TRANSMISSION, ALLISON 1000 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• electronic engine grade braking and tow/haul mode

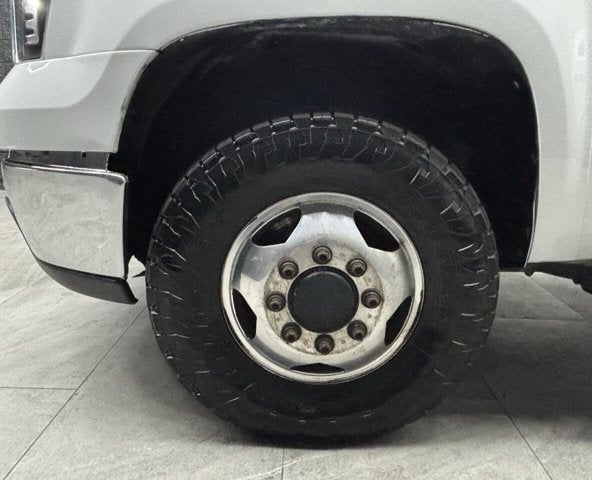

WHEELS, 17" (43.2 CM) PAINTED STEEL

• includes painted center caps and a steel spare (spare wheel will not cosmetically match the other 6 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (STD)

GVWR, 13,000 LBS. (5897 KG)

• with dual rear wheels

MIRRORS, CAMPER, POWER-ADJUSTABLE GLASS, MANUAL EXTENDABLE, HEATED

• Alternative mirrors replacing mirrors that are standard with SEO (5B5) power windows
• locks and mirrors on a base decor truck. Provides RPO (DPN) outside heated power-adjustable manual folding
• manual extendable vertical camper mirrors consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface within a common head. Includes turn signals in mirror glass

TIRE, SPARE LT235/80R17E HIGHWAY

• includes steel spare wheel (spare wheel will not cosmetically match the other 6 wheels)

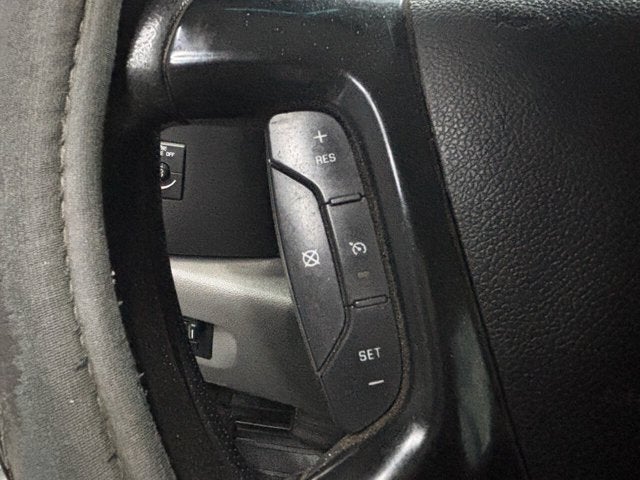

CRUISE CONTROL, ELECTRONIC

• with set and resume speed
• located on steering wheel

TIRES, LT235/80R17E ALL-SEASON HIGHWAY, BLACKWALL

• (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

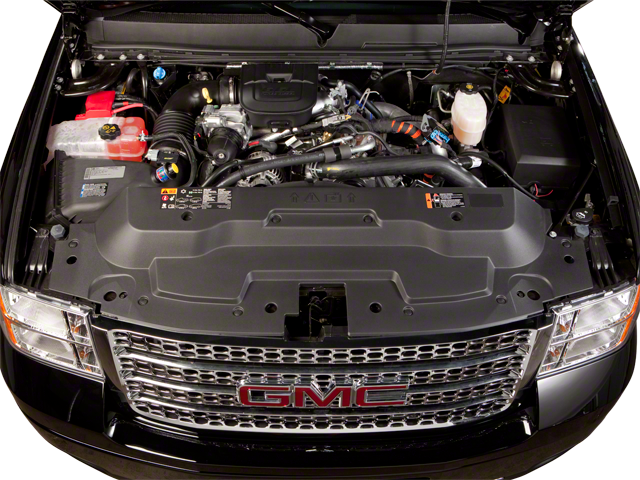

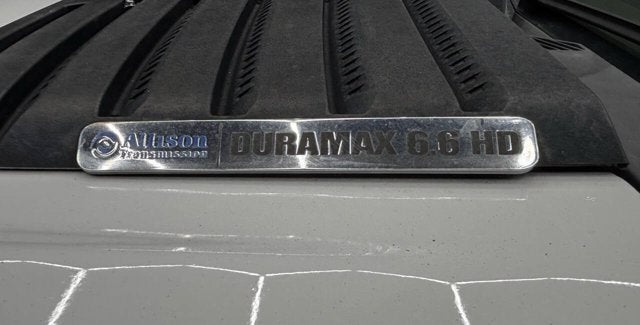

ENGINE, DURAMAX 6.6L V8 TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (335 hp [249.8 kW] @ 3100 rpm
• 685 lb-ft of torque [924.8 N-m] @ 1600 rpm)

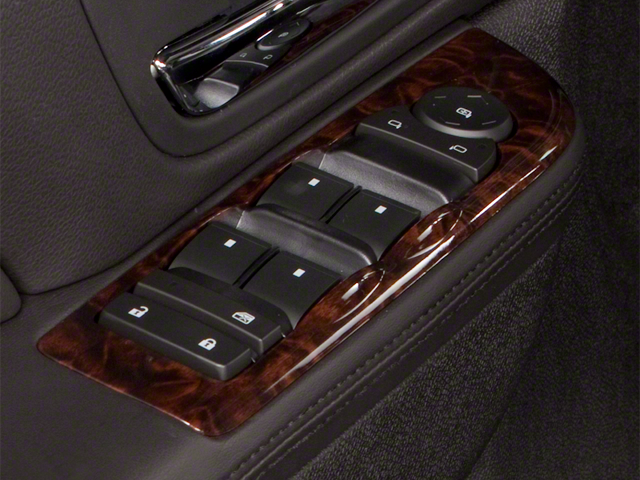

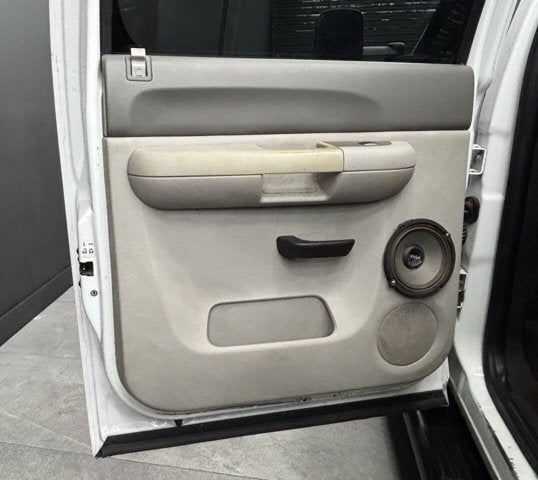

WINDOWS, LOCKS AND MIRRORS, POWER

• Provides power driver and passenger front side windows with uplevel door panels on a base trim level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors
• RPO (AU3) power door locks and RPO (UQ3) speaker system. C/K***43-53 models include rear door power windows and locks. Power mirrors can be upgraded to SEO (6P3) camper
• power-adjustable glass
• manual extendable
• heated mirrors. (Remote Keyless Entry becomes optional on all models and SEO (AU0) Remote Keyless Entry must be ordered and priced if desired.

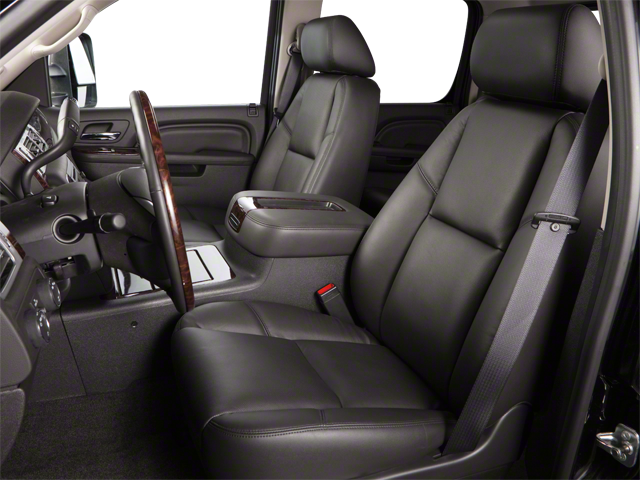

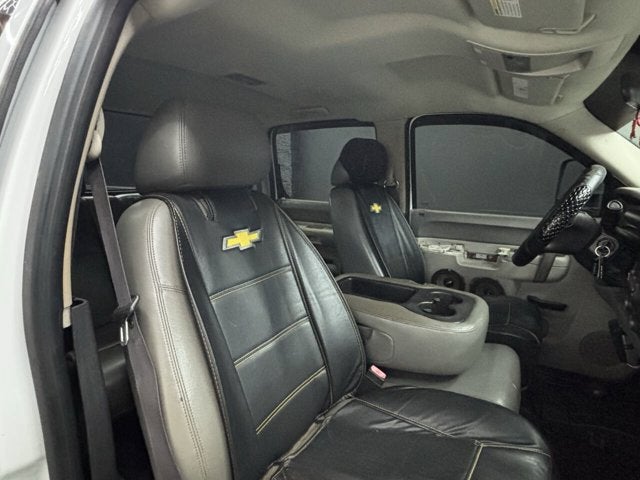

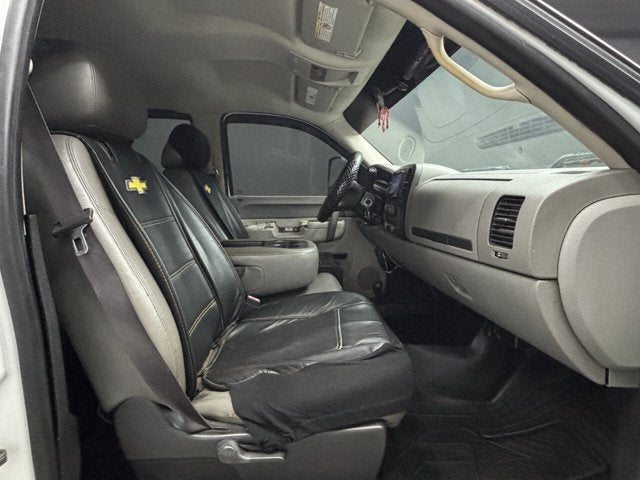

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

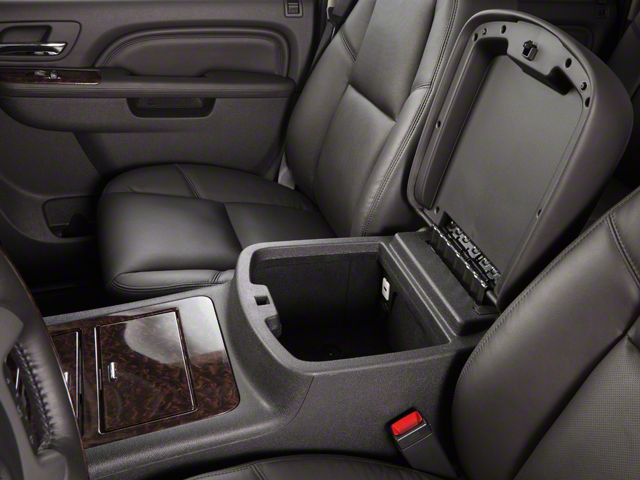

• with outboard head restraints and center fold-down armrest with storage (STD)

DARK TITANIUM, VINYL SEAT TRIM

• (STD)

BATTERY, HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS, MAINTENANCE-FREE

• with rundown protection and retained accessory power

PICKUP BOX, DELETE

• includes bumper delete
• spare tire delete and spare tire carrier delete (Not available on T*30743 models.)

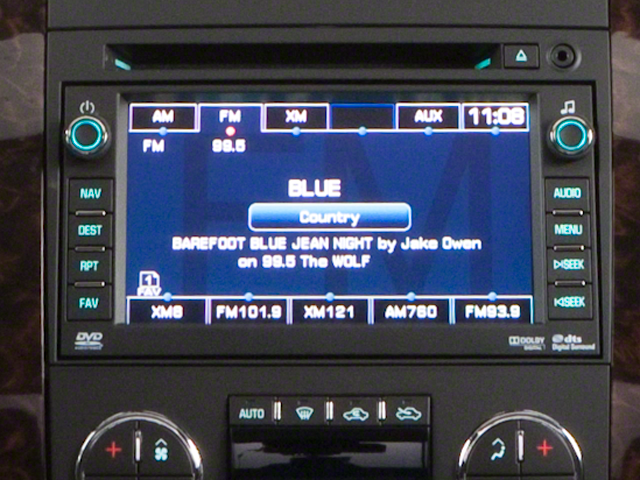

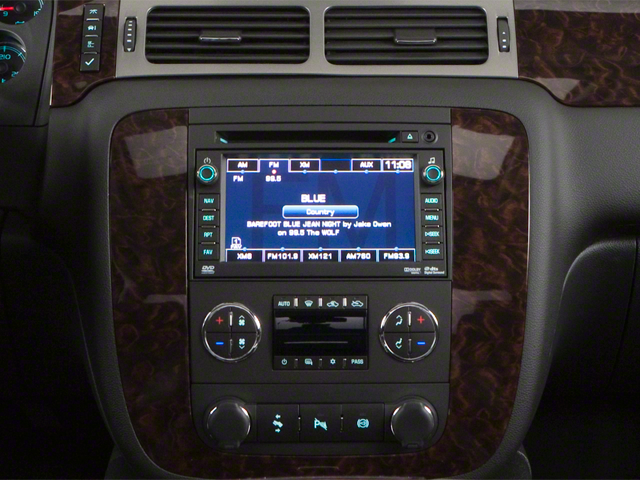

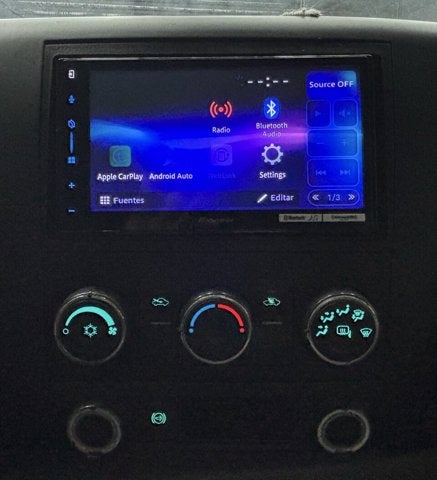

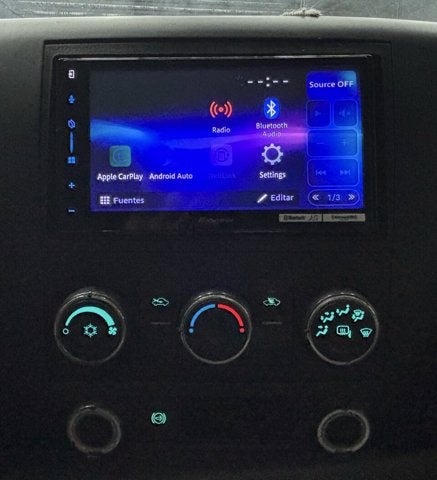

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock

• LICENSE PLATE FRONT MOUNTING PACKAGE
• BUMPER REAR DELETE
• ENGINE BLOCK HEATER
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• WHEELS 17" (43.2 CM) PAINTED STEEL includes painted center caps and a steel spare (spare wheel will not cosmetically match the other 6 wheels) Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (STD)
• GVWR 13 000 LBS. (5897 KG) with dual rear wheels
• MIRRORS CAMPER POWER-ADJUSTABLE GLASS MANUAL EXTENDABLE HEATED Alternative mirrors replacing mirrors that are standard with SEO (5B5) power windows locks and mirrors on a base decor truck. Provides RPO (DPN) outside heated power-adjustable manual folding manual extendable vertical camper mirrors consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface within a common head. Includes turn signals in mirror glass
• TIRE SPARE LT235/80R17E HIGHWAY includes steel spare wheel (spare wheel will not cosmetically match the other 6 wheels)
• CRUISE CONTROL ELECTRONIC with set and resume speed located on steering wheel
• TIRES LT235/80R17E ALL-SEASON HIGHWAY BLACKWALL (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• ENGINE DURAMAX 6.6L V8 TURBO DIESEL V8 B20-DIESEL COMPATIBLE (335 hp [249.8 kW] @ 3100 rpm 685 lb-ft of torque [924.8 N-m] @ 1600 rpm)
• WINDOWS LOCKS AND MIRRORS POWER Provides power driver and passenger front side windows with uplevel door panels on a base trim level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors RPO (AU3) power door locks and RPO (UQ3) speaker system. C/K***43-53 models include rear door power windows and locks. Power mirrors can be upgraded to SEO (6P3) camper power-adjustable glass manual extendable heated mirrors. (Remote Keyless Entry becomes optional on all models and SEO (AU0) Remote Keyless Entry must be ordered and priced if desired.
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• PAINT SOLID
• DARK TITANIUM VINYL SEAT TRIM (STD)
• LAMPS SMOKED AMBER ROOF MARKER
• SUMMIT WHITE
• BATTERY HEAVY-DUTY DUAL 730 COLD-CRANKING AMPS MAINTENANCE-FREE with rundown protection and retained accessory power
• PICKUP BOX DELETE includes bumper delete spare tire delete and spare tire carrier delete (Not available on T*30743 models.)
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• EXHAUST BRAKE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat
• Tow Hooks
• Vinyl Seats
• Pass-Through Rear Seat

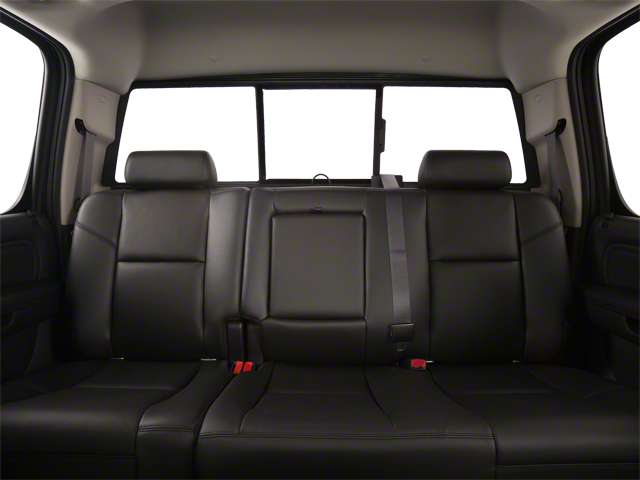

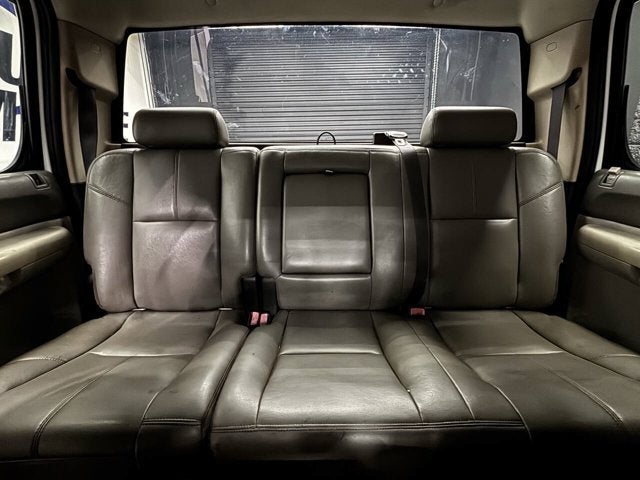

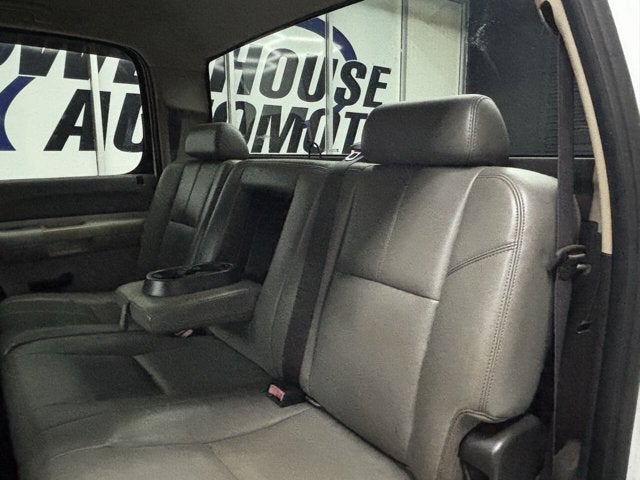

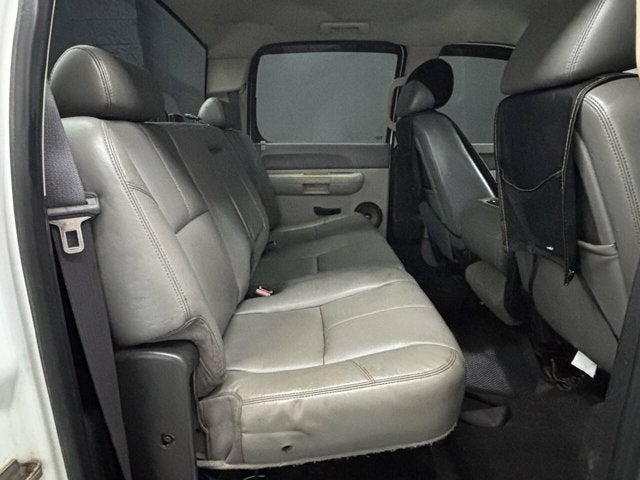

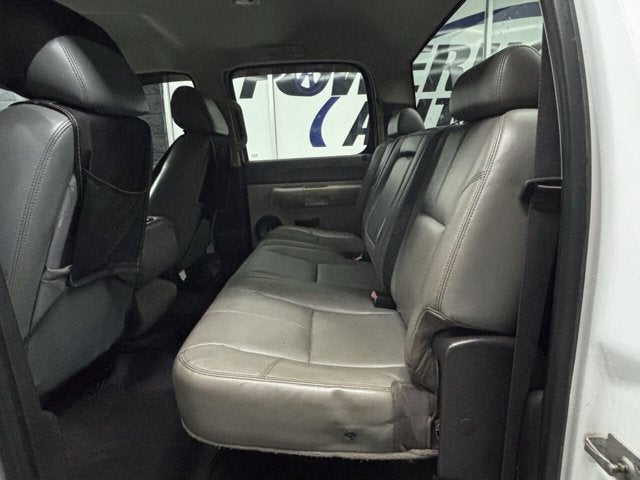

• Rear Bench Seat
• Adjustable Steering Wheel
• Power Door Locks
• Security System
• Power Door Locks
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Child Safety Locks

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9375
• Curb Weight - Front (lbs): 4558
• Curb Weight - Front (lbs): 3839
• Curb Weight - Rear (lbs): 3321
• Curb Weight - Rear (lbs): 3255
• Gross Vehicle Weight Rating Cap (lbs): 13000
• Gross Combined Wt Rating (lbs): 29200
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2550
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1305
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 21100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 8700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 5275
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2175
• Maximum Trailering Capacity (lbs): - TBD -
• Maximum Trailering Capacity (lbs): 13200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9375
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9375
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.32
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Tires
• Front Tire Order Code: QQO
• Rear Tire Order Code: QQO
• Spare Tire Order Code: ZQO
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Spare Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): 2805
• Front Tire Capacity (lbs): 2515
• Rear Tire Capacity (lbs): 2470
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 50.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.7
• Length, Overall w/o rear bumper (in): 259.1
• Width, Max w/o mirrors (in): 95.9
• Height, Overall (in): 77.9
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.6
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 56.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.6
• Ground Clearance, Rear (in): 8.4
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 60.3
• Second Head Room (in): 40.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary

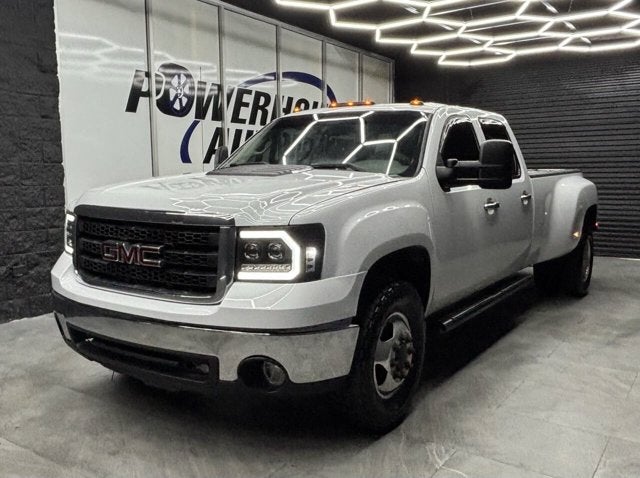

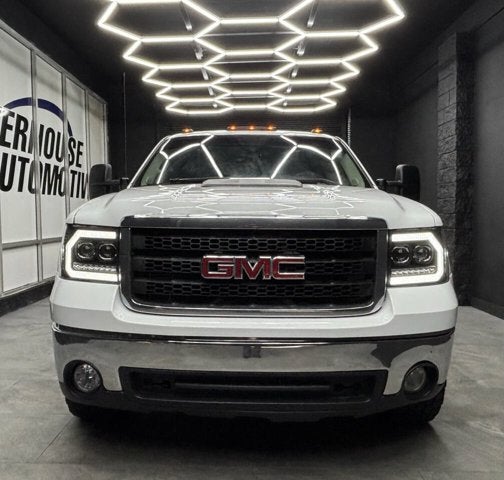

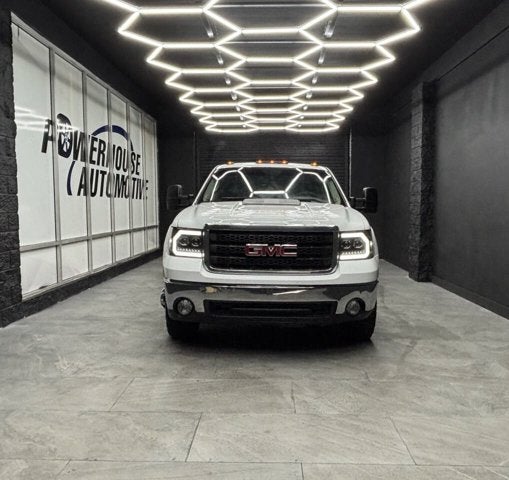

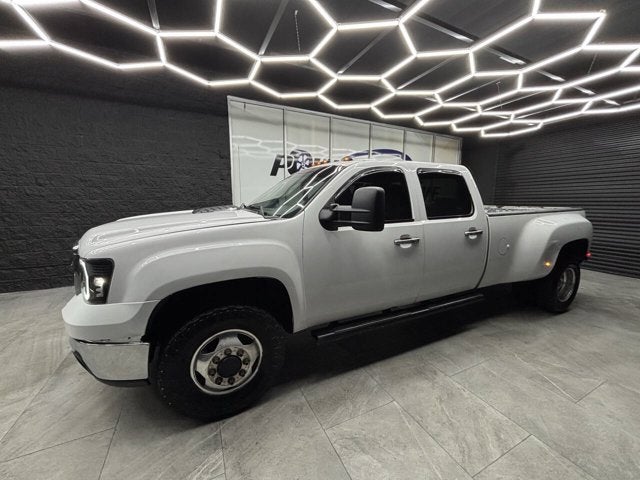

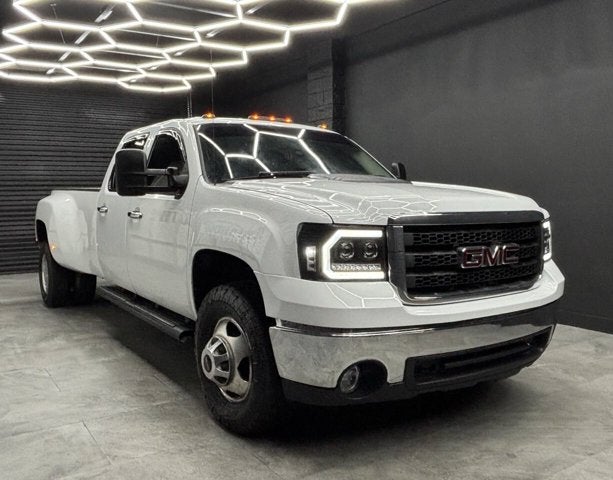

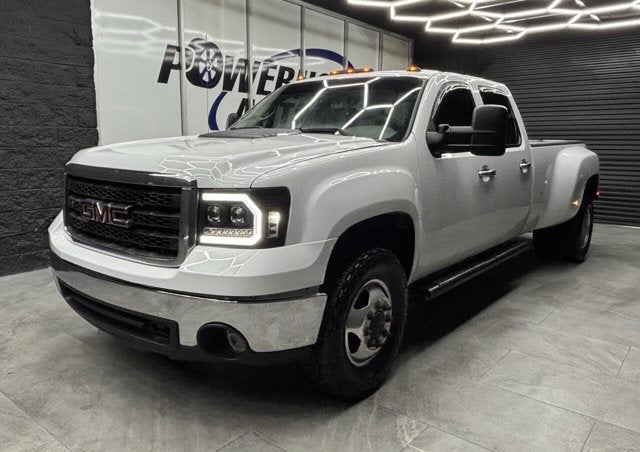

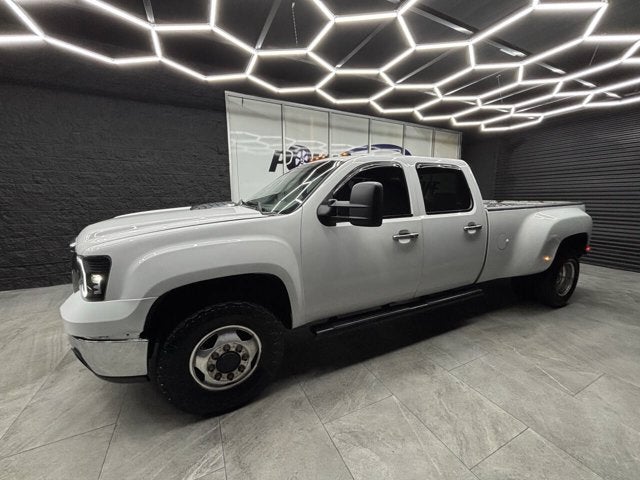

• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab
• Body Style: Crew Cab 8' Fleetside
• Body Code: ZW9
• Body Code: E63
