• 6-speaker audio system
• Air conditioning, single-zone
• Cruise control, steering wheel-mounted
• Door locks, power
• Mirror, inside rearview manual day/night

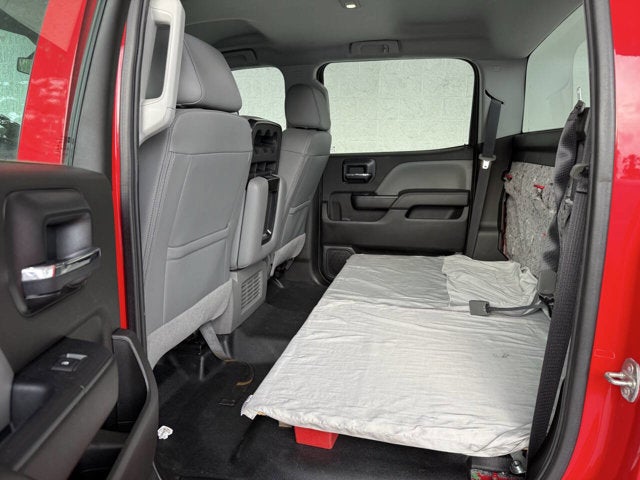

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Speedometer, miles/kilometers
• Steering wheel, urethane
• Visors, driver and front passenger, vinyl

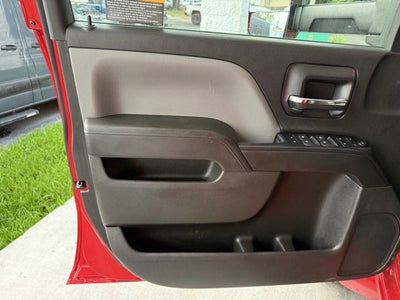

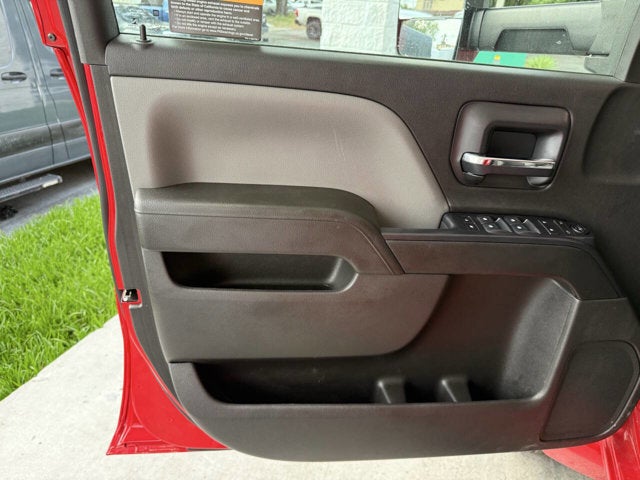

• Windows, power with driver express up and down and express down on all other windows

• Alternator, 150 amps
• Rear wheel drive
• Trailer brake controller, integrated

• Daytime Running Lamps, with automatic exterior lamp control
• Traction control

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

SPARE TIRE DELETE

• (STD)

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

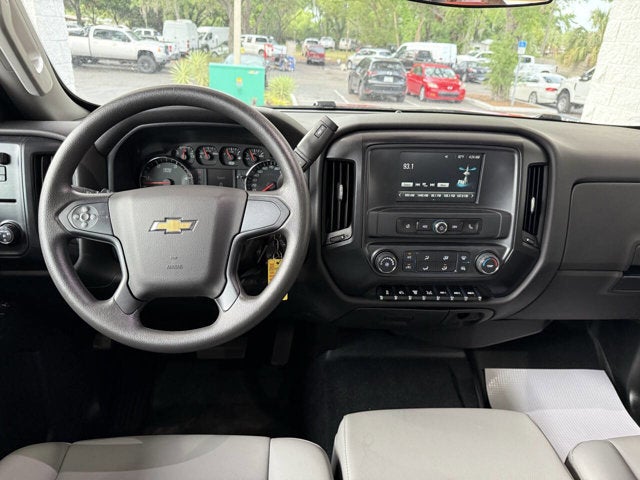

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones.

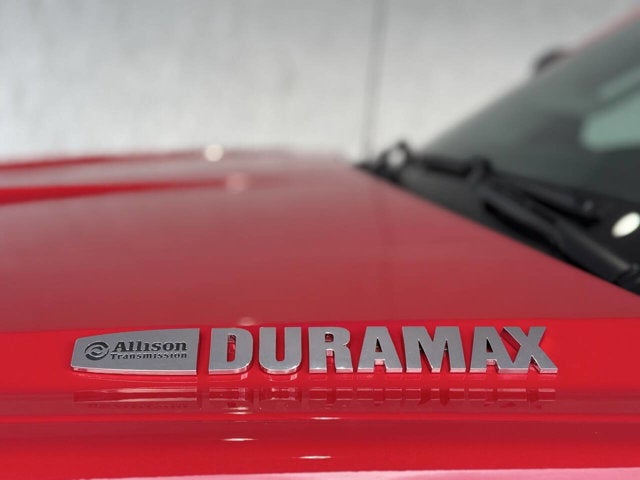

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

MIRRORS, OUTSIDE, BLACK, HEATED POWER-ADJUSTABLE, HIGH-VISIBILITY VERTICAL CAMPER-STYLE, AND LOWER CONVEX SPOTTER GLASS, MANUAL-FOLDING.

• Convex glass is not heated and not power adjustable. 102"
• Wide Load

TIRES, FRONT 225/70R19.5G TRACTION BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lb.

ELECTRICAL PROVISIONS, REAR OF FRAME, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

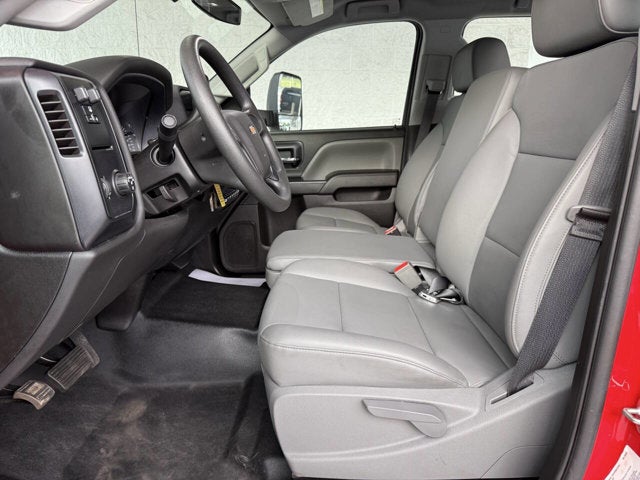

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRES, REAR 225/70R19.5G TRACTION BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lb.

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

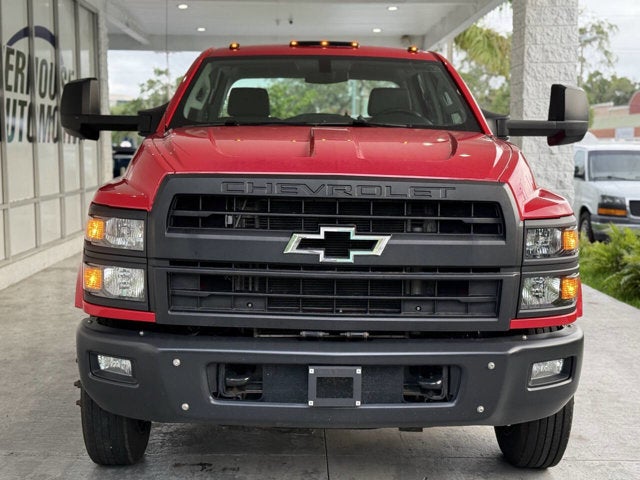

GRILLE GUARD SCREEN, STONE PROTECTION

• (mounted to bumper)

BACKUP ALARM

• (Includes (SFW) SEO Calibration for backup alarm.

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

WHEELS, 19.5" X 6.75", STEEL, BLACK PAINTED, 8-HOLES, HUB PILOTED

• (STD)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON

• provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
• WHEELBASE 199" (505.5 CM) 84" CA
• SPARE TIRE DELETE (STD)
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS VINYL SEAT TRIM
• LICENSE PLATE KIT FRONT
• KEY SYSTEM 2 SPARE KEYS
• REAR AXLE 15 500 LB. (7 031 KG) DANA SPICER S16-130 SINGLE REDUCTION
• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
• REMOTE KEYLESS ENTRY
• AUDIO SYSTEM 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones.
• FRONT STABILIZER BAR
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• PAINT SCHEME STYLE 1
• MIRRORS OUTSIDE BLACK HEATED POWER-ADJUSTABLE HIGH-VISIBILITY VERTICAL CAMPER-STYLE AND LOWER CONVEX SPOTTER GLASS MANUAL-FOLDING. Convex glass is not heated and not power adjustable. 102" Wide Load
• TIRES FRONT 225/70R19.5G TRACTION BLACKWALL GOODYEAR Max Axle Load: 7 940 lb.
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• FRONT SUSPENSION 8 000 LB. (3 629 KG) MULTI-LEAF INCLUDES SHOCK ABSORBERS
• 34 000 LB. GCWR (15 422 KG)
• GVWR 19 500 LB. (8845 KG)
• ENGINE BLOCK HEATER
• REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
• ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

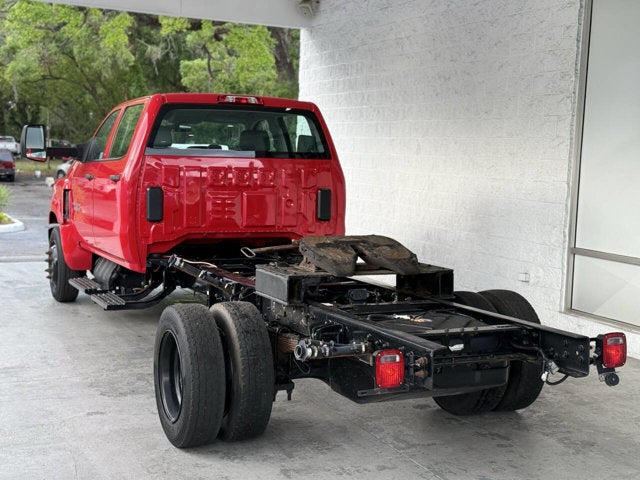

• AXLE TO END OF FRAME 63"
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRES REAR 225/70R19.5G TRACTION BLACKWALL GOODYEAR Max Axle Load: 15 000 lb.
• PAINT SOLID
• FRONT AXLE 8 000 LB. DANA/SPICER D800-N "I"-BEAM NON-DRIVING
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• RED HOT
• BACK-UP ALARM CALIBRATION This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

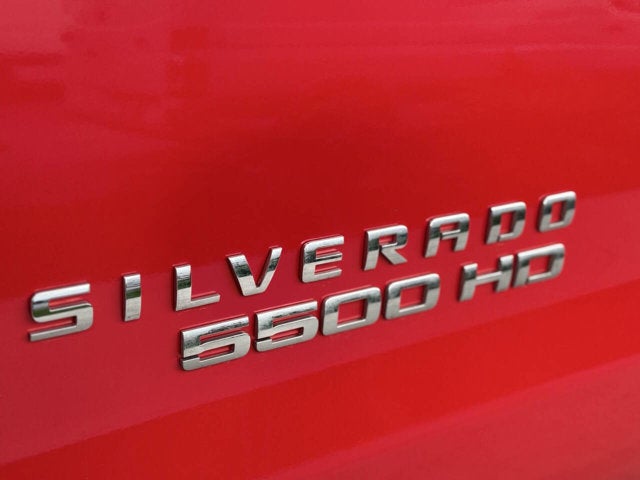

• 5500 HD SERIES
• FOG LAMPS FRONT HALOGEN
• GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
• BACKUP ALARM (Includes (SFW) SEO Calibration for backup alarm.
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• WHEELS 19.5" X 6.75" STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• ALTERNATOR 220 AMPS
• PROVISION FOR CAB ROOF-MOUNTED LAMP/BEACON provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• POWER OUTLET 110-VOLT AC
• Turbocharged
• Rear Wheel Drive
• Power Steering
• ABS
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Running Boards/Side Steps
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Vinyl Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Traction Control
• Daytime Running Lights
• Automatic Headlights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Back-Up Camera

• Vehicle
• Number of Passenger Doors: 4
• Front Frame Rating: - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 1300
• Cold Cranking Amps @ 0° F (Primary): 1100
• Cold Cranking Amps @ 0° F (2nd): 1300
• Cold Cranking Amps @ 0° F (2nd): 1100
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 48
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 8000
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Rear (lbs): 15500
• Gross Axle Wt Rating - Rear (lbs): 10000
• Curb Weight - Front (lbs): 5167
• Curb Weight - Front (lbs): 5178
• Curb Weight - Front (lbs): 5098
• Curb Weight - Rear (lbs): 3283
• Curb Weight - Rear (lbs): 3240
• Curb Weight - Rear (lbs): 3230
• Curb Weight - Rear (lbs): 3187
• Curb Weight - Rear (lbs): 3153
• Gross Vehicle Weight Rating Cap (lbs): 19500
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Gross Combined Wt Rating (lbs): 34000
• Gross Combined Wt Rating (lbs): 26000
• Suspension
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 8000
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Rear (lbs): 15500
• Spring Capacity - Rear (lbs): 11000
• Axle Type - Front: Dana Spicer I-Beam
• Axle Type - Rear: Dana Spicer Single Reduction
• Axle Capacity - Front (lbs): 8000
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 15500
• Axle Capacity - Rear (lbs): 10000
• Axle Ratio (:1) - Rear: 4.30
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 50.8
• Stabilizer Bar Diameter - Front (in): 1.26
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.54
• Tires
• Front Tire Order Code: XMF
• Front Tire Order Code: XEY
• Rear Tire Order Code: YMF
• Rear Tire Order Code: YEY
• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 7940
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Wheels
• Front Wheel Size (in): 19.5 x 6.75
• Rear Wheel Size (in): 19.5 x 6.75
• Front Wheel Offset (mm): - TBD -
• Rear Wheel Offset (mm): - TBD -
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.6
• Steering Ratio (:1), At Lock: 19.6
• Turning Diameter - Curb to Curb (ft): 55.7
• Turning Diameter - Curb to Curb (ft): 49.7
• Turning Diameter - Wall to Wall (ft): 57.3
• Turning Diameter - Wall to Wall (ft): 51.3
• Frame
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Capacity, Approx (gal): 40
• Fuel Tank Location: Front & Rear
• Fuel Tank Location: Behind Rear Axle
• Exterior Dimensions
• Wheelbase (in): 199
• Wheelbase (in): 175
• Length, Overall (in): 296.5
• Length, Overall (in): 282.8
• Length, Overall (in): 258.7
• Width, Max w/o mirrors (in): 92.7
• Height, Overall (in): 82.87
• Height, Overall (in): 82.89
• Height, Overall (in): 83.04
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 63
• Overhang, Rear w/o bumper (in): 49
• Front Bumper to Back of Cab (in): 149.48
• Cab to Axle (in): 84.09
• Cab to Axle (in): 60.08
• Cab to End of Frame (in): 147
• Cab to End of Frame (in): 133.4
• Cab to End of Frame (in): 109.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 34.1
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Body Length Default Value (ft): 12
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.75
• Second Head Room (in): 40.51
• Second Leg Room (in): 40.94
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

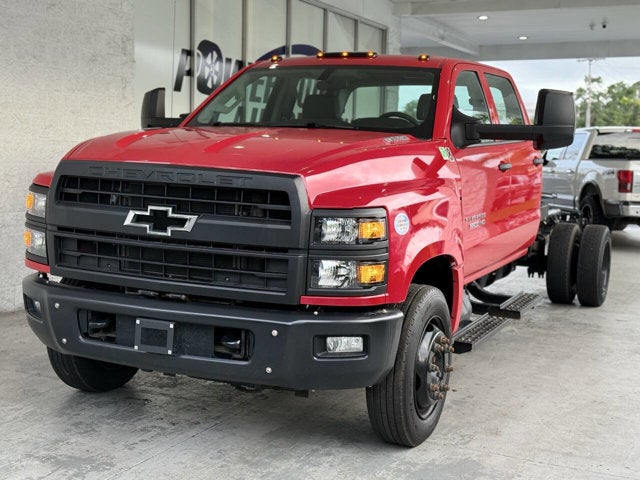

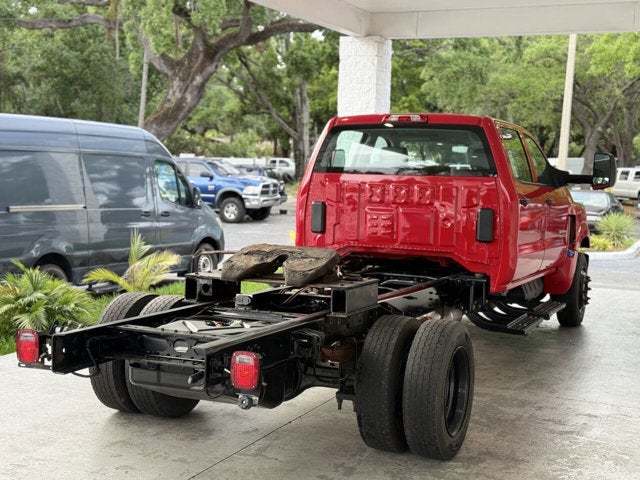

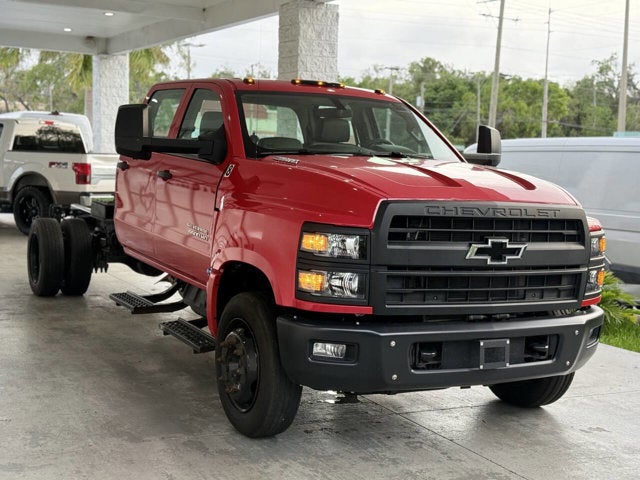

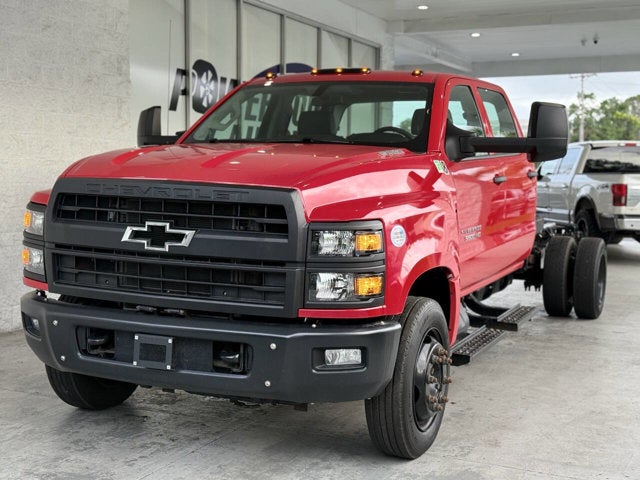

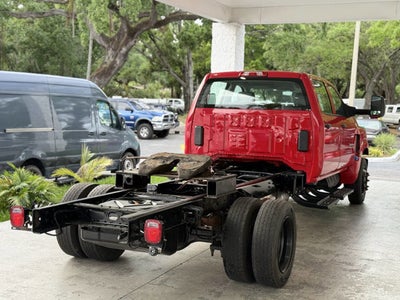

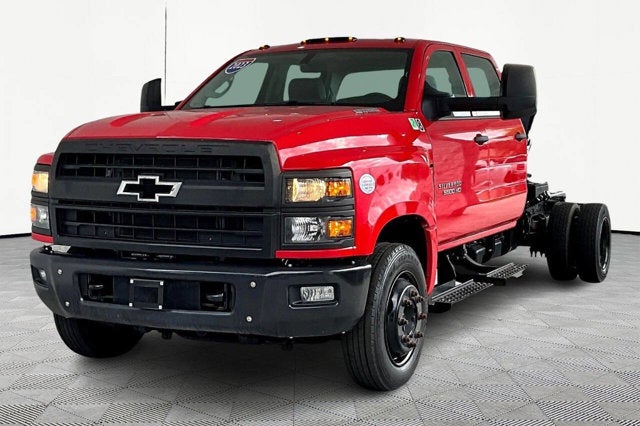

• Vehicle Name: Chevrolet Silverado MD
• Body Style: Crew Cab Chassis Cab
• Medium Duty Performance
• Driver Ratio: 1
• Torque @ Clutch Engage (ft-lbs): - TBD -
• Torque Converter: 1.764
• Static Loaded Radius (in): - TBD -
• Max Speed For Gradeability: 75
• Max Speed For Gradeability: 79
